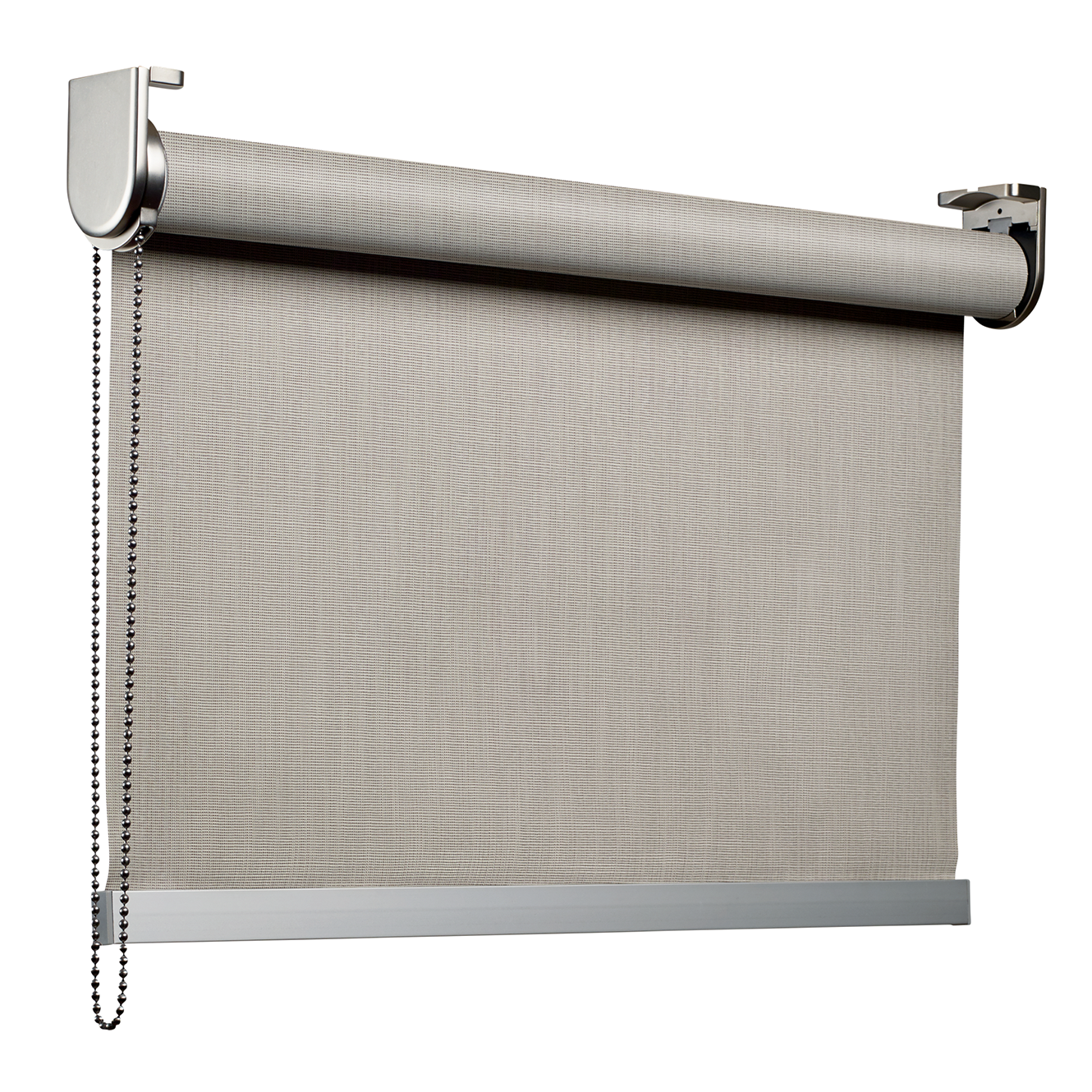

Follow the instructions below for the easy installation of an Ultra Clutch Rollershade system. If you have any challenges, please contact Customer Relations at 888.582.8780 or firstname.lastname@example.org for assistance.
• Power Driver w/ 1/2" Extension Hex or Phillips Bit • 1⁄16" Drill Bit if pre-drilling • Pencil
Slide bracket cover over the bracket.
Align mounting brackets in the windows casement to the desired location and mark the holes with a pencil.
Remove bracket cover and install brackets at marked locations so that the feet face inward using #8 x 1-1/2" wood screws (repeat bracket installation on the other side of the window).
Snap base plate covers onto brackets to cover installation screws.
Snap idler pin into the bracket that is opposite the clutch location (if the clutch is right, this will be left).
Hold up rollershade and slide end onto the idler.
While continuing to hold shade onto the idler bracket, snap clutch into the bracket (note: for larger shades two humans will be required).
